Confirmé

Mécanisme d'échappement
Fourni
Décharge
Côté alimentation, type de connexion
Autres
M
Côté alimentation, diam. de connexion
M5
M5x0.8
Sens du débit
Sens à gauche
De la droite vers la gauche
Côté commande, types de connexions
Autres
M
Côté commande, diamètre de connexion
M5
M5x0.8
Jauge de pression
Avec jauge de pression
Manomètre de forme ronde (sans indicateur de limite)
Size of Body
- 10
Accessory
- Avec support
Set Pressure
- 0.05 à 0.7MPa
Pressure Unit
- Unités de plaque signalétique et de jauge de pression : MPa
Custom-made Specifications
- Aucun
Handle Direction / Position
- Poignée vers le bas
Type
- AR10
CAO
- 2D
- 3D
Jours d'expédition estimés
- Tout
- Dans les 26 jours ouvrables

AR10-40-A, Régulateur modulaire (AR10-M5BG-R-A)

Cliquez sur l’image pour l’agrandir

Catalogue

Attention

Les images des produits peuvent être représentatives. Reportez-vous au catalogue du fabricant pour plus de détails.

Référence pièce:

AR10-M5BG-R-A

Réinitialiser

Prix unitaire (hors TVA)
34.06 €
Total (hors TVA)
34.06 €
Prix TTC) : 40.53 €
Délai d'expédition prévu
26 jours ouvrables
Date d'expédition prevue : 10.06.2025

Quantité ?	1 - 10	11+
Prix unitaire (hors TVA) (Prix unitaire TTC)	34.06 € (40.53 €)	34.06 € (40.53 €)
Jours d'expédition	26 jours	Devis

délai d'expédition, frais de transport

prix

Informations sur le produit
Liste des numéros de pièces
Plus d'informations
Catalogue

Informations sur le produit

Regulator AR10-A to AR40-A: Detailed Examples

AR10-A: product images

AR20-A: product images

AR30-A: product images

Regulator AR10-A to AR40-A Specifications

Model number notation (standard specifications)

Model number example

-				Code	Contents	(1)
						Body size
						10	20	25	30	40
(2)	Screw Type			No symbol	Metric thread (M5)	●	-	-	-	-
				No symbol	Rc	-	●	●	●	●
				N	NPT	-	●	●	●	●
				F	G	-	●	●	●	●
(3)	Piping connection port diameter			M5	M5	●	-	-	-	-
				01	1/8	-	●	-	-	-
				02	1/4	-	●	●	●	●
				03	3/8	-	-	●	●	●
				04	1/2	-	-	-	-	●
				06	3/4	-	-	-	-	●
(4)	Option ^{Note 1)}	a	Mounting	No symbol	Without optional mounting parts	●	●	●	●	●
				B ^{Note 2)}	With Bracket	●	●	●	●	●
				H	With set nut (for panel mounting) ^{Note 3)}	●	●	●	●	●
		b	Pressure gauge ^{Note 4)}	No symbol	Without pressure gauge	●	●	●	●	●
				G	Round-type pressure gauge (without limit indicator)	●	-	-	-	-
				G	Round-type pressure gauge (with limit indicator)	-	●	●	●	●
				M	Round-type pressure gauge (with color zone)	-	●	●	●	●
(5)	Semi-standard	c	Set pressure ^{Note 5)}	No symbol	0.05 to 0.7‑MPa setting	●	●	●	●	●
		c	Set pressure ^{Note 5)}	1	0.02 to 0.2‑MPa setting	●	●	●	●	●
		d	Exhaust mechanism	No symbol	Relieving type	●	●	●	●	●
		d	Exhaust mechanism	N	Non-relieving type	●	●	●	●	●
		e	Flow direction	No symbol	Flow direction: left → right	●	●	●	●	●
		e	Flow direction	R	Flow direction: right → left	●	●	●	●	●
		f	Handle direction	No symbol	Handle downward	●	●	●	●	●
		f	Handle direction	Y	Handle upward	●	●	●	●	●
		g	Pressure unit	No symbol	Nameplate and pressure gauge units: MPa	●	●	●	●	●
		g	Pressure unit	Z ^{Note 6)}	Nameplate and pressure gauge units: psi	○ ^{Note 7)}	○ ^{Note 7)}	○ ^{Note 7)}	○ ^{Note 7)}	○ ^{Note 7)}

*Note 1) Options B, G, H, M are not assembled and are supplied loose at the time of shipment.
*Note 2) Set nuts are included with the bracket.
*Note 3) Products AR20-B to AR40-B are not interchangeably mountable with previous products AR20 to AR40.
*Note 4) When the pressure gauge is attached, a 1.0 MPa will be fitted for standard (0.7‑MPa setting) type; 0.4 MPa for the 0.2‑MPa type (1.0‑MPa pressure gauge only for the AR10-A).
*Note 5) Pressure can be set higher than the specification pressure in some cases, but use with the pressure within the specified range.
*Note 6) Thread type: NPT. Under new Japanese measurement laws, this product is only available for sale outside of Japan (SI units are used in Japan). Round-type pressure gauge (with color zone): cannot be used in combination with M.
*Note 7) ○ is for thread types M5 and NPT only.

Model number notation (Made-to-order specifications X406)

Made-to-order specifications X406: model number example

-				Code	Contents	(1)
						Body size
						20	25	30	40
(2)	Screw Type			No symbol	Rc	●	●	●	●
				N	NPT	●	●	●	●
				F	G	●	●	●	●
(3)	Piping connection port diameter			01	1/8	●	-	-	-
				02	1/4	●	●	●	●
				03	3/8	-	●	●	●
				04	1/2	-	-	-	●
				06	3/4	-	-	-	●
(4)	^{Note 1)} Option	a	Mounting	No symbol	Without optional mounting parts	●	●	●	●
				B ^{Note 2)}	With Bracket	●	●	●	●
				H	With set nut (for panel mounting) ^{Note 3)}	●	●	●	●
		b	Pressure gauge	No symbol	Without pressure gauge	●	●	●	●
				G	Round-type pressure gauge (with limit indicator)	●	●	●	●
				M	Round-type pressure gauge (with color zone)	●	●	●	●
(5)	Semi-standard	c	Exhaust mechanism	No symbol	Relieving type	●	●	●	●
		c	Exhaust mechanism	N	Non-relieving type	●	●	●	●
		d	Flow direction	No symbol	Flow direction: left → right	●	●	●	●
		d	Flow direction	R	Flow direction: right → left	●	●	●	●
		e	Handle direction	No symbol	Handle downward	●	●	●	●
		e	Handle direction	Y	Handle upward	●	●	●	●
		f	Pressure unit	No symbol	Nameplate and pressure gauge units: MPa	●	●	●	●
		f	Pressure unit	Z ^{Note 4)}	Nameplate and pressure gauge units: psi	○ ^{Note 5)}	○ ^{Note 5)}	○ ^{Note 5)}	○ ^{Note 5)}

*Note 1) Options B, G, H, M are not assembled and are supplied loose at the time of shipment.
*Note 2) Set nuts are included with the bracket.
*Note 3) Only for the AR20-A to AR40-A.
*Note 4) Thread type: NPT is applicable. Under new Japanese measurement laws, this product is only available for sale outside of Japan (SI units are used in Japan). Round-type pressure gauge (with color zone): cannot be used in combination with M.
*Note 5) ○ is for thread type NPT only.

Specifications

Proof pressure	1.5 MPa
Maximum operating pressure	1.0 MPa
Set pressure range ^{Note 1)}	0.05 to 0.4 MPa

*Note 1) Pressure can be set higher than the specification pressure in some cases, but use with the pressure within the specified range.

Applicable models

Model	AR20-A	AR25-A	AR30-A	AR40-A	AR40-06-A
Piping connection port diameter	1/8, 1/4	1/4, 3/8	1/4, 3/8	1/4, 3/8, 1/2	3/4

Model number notation (Made-to-order specifications X2068)

Made-to-order specifications X2068: model number example

-				Code	Contents	(1)
						Body size
						20	25	30	40
(2)	Screw Type			No symbol	Rc	●	●	●	●
				N	NPT	●	●	●	●
				F	G	●	●	●	●
(3)	Piping connection port diameter			01	1/8	●	-	-	-
				02	1/4	●	●	●	●
				03	3/8	-	●	●	●
				04	1/2	-	-	-	●
				06	3/4	-	-	-	●
(4)	^{Note 1)} Option	a	Mounting	No symbol	Without optional mounting parts	●	●	●	●
				B ^{Note 2)}	With Bracket	●	●	●	●
				H	With set nut (for panel mounting) ^{Note 3)}	●	●	●	●
		b	Pressure gauge	No symbol	Without pressure gauge	●	●	●	●
				G	Round-type pressure gauge (with limit indicator)	●	●	●	●
				M	Round-type pressure gauge (with color zone)	●	●	●	●
(5)	Semi-standard	c	Exhaust mechanism	No symbol	Relieving type	●	●	●	●
		c	Exhaust mechanism	N	Non-relieving type	●	●	●	●
		d	Flow direction	No symbol	Flow direction: left → right	●	●	●	●
		d	Flow direction	R	Flow direction: right → left	●	●	●	●
		e	Handle direction	No symbol	Handle downward	●	●	●	●
		e	Handle direction	Y	Handle upward	●	●	●	●
		f	Pressure unit	No symbol	Nameplate and pressure gauge units: MPa	●	●	●	●
		f	Pressure unit	Z ^{Note 4)}	Nameplate and pressure gauge units: psi	○ ^{Note 5)}	○ ^{Note 5)}	○ ^{Note 5)}	○ ^{Note 5)}

*Note 1) Options B, G, H, M are not assembled and are supplied loose at the time of shipment.
*Note 2) Set nuts are included with the bracket.
*Note 3) Only for the AR20-A to AR40-A.
*Note 4) Thread type: NPT is applicable. Under new Japanese measurement laws, this product is only available for sale outside of Japan (SI units are used in Japan). Round-type pressure gauge (with color zone): cannot be used in combination with M.
*Note 5) ○ is for thread type NPT only.

Specifications

Proof pressure	1.5 MPa
Maximum operating pressure	1.0 MPa
Set pressure range	0.05 to 0.85 MPa

Applicable models

Model	AR20-A	AR25-A	AR30-A	AR40-A	AR40-06-A
Piping connection port diameter	1/8, 1/4	1/4, 3/8	1/4, 3/8	1/4, 3/8, 1/2	3/4

Standard specification

Model	AR10-A	AR20-A	AR25-A	AR30-A	AR40-A	AR40-06-A
Piping connection port diameter	M5 ×; 0.8	1/8, 1/4	1/4, 3/8	1/4, 3/8	1/4, 3/8, 1/2	3/4
Pressure gauge connection port size	1/16 ^Note)	1/8
Applicable fluids	Air
Ambient temperature and working fluid temperature	-5 to +60°C (no freezing)
Proof pressure	1.5 MPa
Maximum operating pressure	1.0 MPa
Set pressure range	0.05 to 0.7 MPa
Structure	Relieving type
Weight (kg)	0.06	0.17	0.19	0.34	0.58	0.60

Note) Use a bushing (part no.: 131368) when connecting R1/8 type pressure gauges to Rc1/16 connection ports.

Options / Part No.

Option specification			Model
Option specification			AR10-A	AR20-A	AR25-A	AR30-A	AR40-A	AR40-06-A
Bracket assembly ^{Note 1)}			AR12P-270AS	AR22P-270AS	AR27P-270AS	AR32P-270AS	AR42P-270AS	AR42P-270AS
Set nut			AR12P-260S	AR22P-260S	AR22P-260S	AR32P-260S	AR42P-260S	AR42P-260S
Pressure gauge	Round-type ^{Note 2)}	Standard	G27-10-R1	G36-10-□01			G46-10-□01
	Round-type ^{Note 2)}	0.02 to 0.2‑MPa setting	G27-10-R1^{Note 3)}	G36-4-□01			G46-4-□01
	Round-type ^{Note 2)} (with color zone)	Standard	-	G36-10-□01-L			G46-10-□01-L
	Round-type ^{Note 2)} (with color zone)	0.02 to 0.2‑MPa setting	-	G36-4-□01-L			G46-4-□01-L

*Note 1) Assembly of a bracket and set nuts.
*Note 2) The □ in the part numbers for round-type pressure gauges indicates the connection thread type. Insert no symbol for Rc, and use "N" for NPT. Contact the manufacturer separately regarding NPT connection thread types and for psi unit specification pressure gauges.
*Note 3) Pressure gauge for standard type.

Structural Drawings

AR10-A structural drawing

AR20-A/40-06-A: structural drawings

Component Parts

Number	Part name	Materials	Model	Additional notes
1	Body	Zinc die-cast	AR10-A	Urban white
1	Body	Die-cast aluminum	AR20-A to AR40-A	Urban white
2	Bonnet	Polyacetal	AR10-A to AR40-A	Urban white

Replacement Parts

Number	Part name	Materials	Part number
Number	Part name	Materials	AR10-A	AR20-A	AR25-A	AR30-A	AR40-A	AR40-06-A
3	Valve assembly	SUS, HNBR	AR10P-090S	AR22P-060AS		AR32P-060AS	AR42P-060AS
4	Diaphragm assembly	Weatherable NBR	AR10P-150AS ^Note)	AR22P-150AS		AR32P-150AS	AR42P-150AS
5	Valve guide assembly	Polyacetal	131329	AR22P-050AS		AR32P-050AS	AR42P-050AS

*Note) The AR10-A is a piston type. Assembly is of a piston and a seal (KSYP-13).

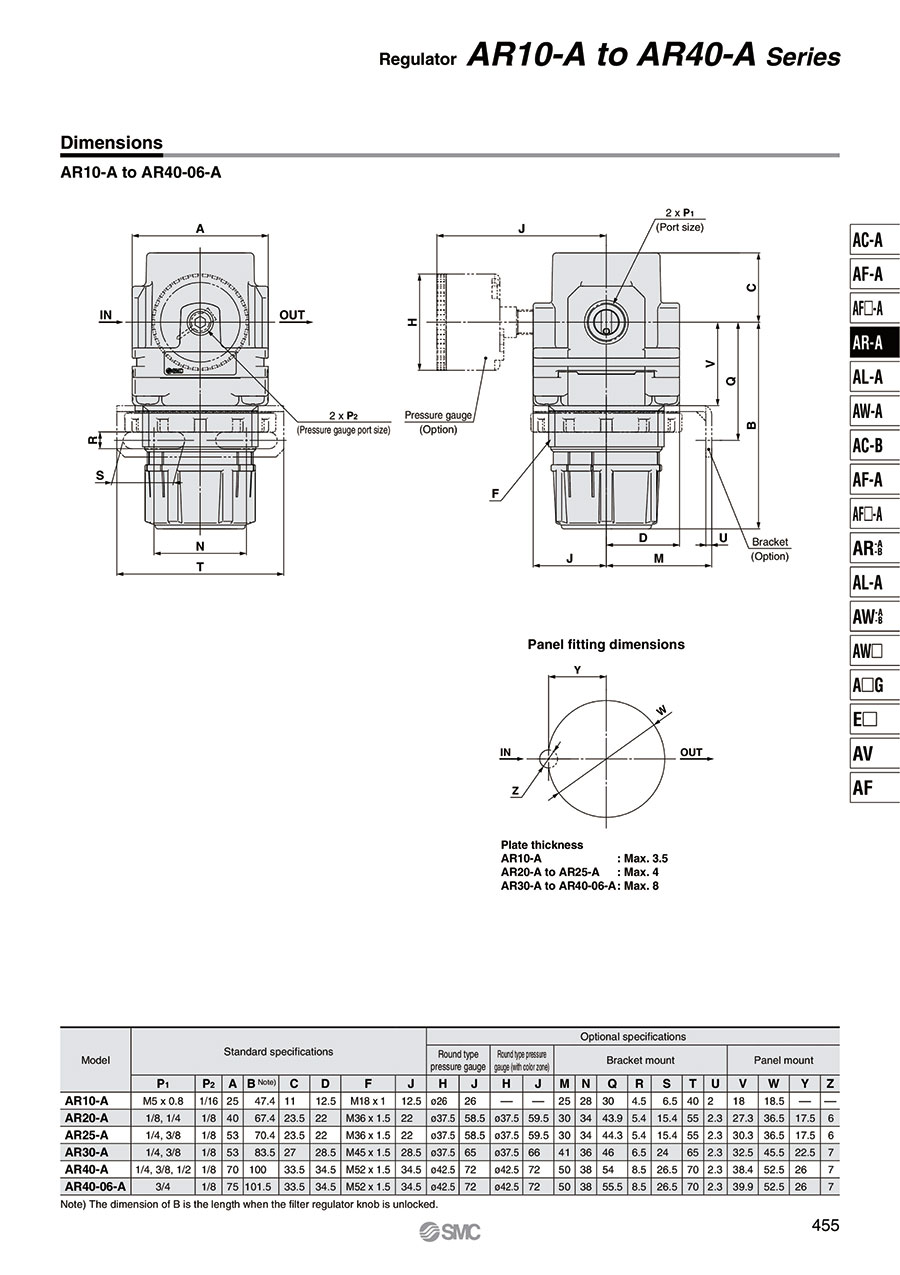

Regulator AR10-A to AR40-A Dimensions

(Unit: mm)

Regulator AR10-A to AR40-A: dimensional drawings

Model	Standard specification								Option specification
	Standard specification								Round-type pressure gauge		Round-type pressure gauge (with color zone)		Bracket mounting dimensions							Panel mount
	P₁	P₂	A	B ^Note)	C	D	F	J	H	J	H	J	M	N	Q	R	S	T	U	V	W	Y	Z
AR10-A	M5 ×; 0.8	1/16	25	47.4	11	12.5	M18 × 1	12.5	ø26 (diameter 26 mm)	26	-	-	25	28	30	4.5	6.5	40	2	18	18.5	-	-
AR20-A	1/8, 1/4	1/8	40	67.4	23.5	22	M36 × 1.5	22	ø37.5 (diameter 37.5 mm)	58.5	ø37.5 (diameter 37.5 mm)	59.5	30	34	43.9	5.4	15.4	55	2.3	27.3	36.5	17.5	6
AR25-A	1/4, 3/8	1/8	53	70.4	23.5	22	M36 × 1.5	22	ø37.5 (diameter 37.5 mm)	58.5	ø37.5 (diameter 37.5 mm)	59.5	30	34	44.3	5.4	15.4	55	2.3	30.3	36.5	17.5	6
AR30-A	1/4, 3/8	1/8	53	83.5	27	28.5	M45 × 1.5	28.5	ø37.5 (diameter 37.5 mm)	65	ø37.5 (diameter 37.5 mm)	66	41	36	46	6.5	24	65	2.3	32.5	45.5	22.5	7
AR40-A	1/4, 3/8, 1/2	1/8	70	100	33.5	34.5	M52 × 1.5	34.5	ø42.5 (diameter 42.5 mm)	72	ø42.5 (diameter 42.5 mm)	72	50	38	54	8.5	26.5	70	2.3	38.4	52.5	26	7
AR40-06-A	3/4	1/8	75	101.5	33.5	34.5	M52 × 1.5	34.5	ø42.5 (diameter 42.5 mm)	72	ø42.5 (diameter 42.5 mm)	72	50	38	55.5	8.5	26.5	70	2.3	39.9	52.5	26	7

*Note) The dimension B is the length when the filter regulator knob (handle) is unlocked.

Liste des numéros de pièces

Nombre d’articles

Référence pièce

AR10-M5BG-R-A

En rapport	Mécanisme d'échappement	Côté alimentation, type de connexion	Côté alimentation, diam. de connexion	Sens du débit	Côté commande, types de connexions	Côté commande, diamètre de connexion	Jauge de pression	Size of Body	Accessory	Set Pressure	Pressure Unit	Custom-made Specifications	Handle Direction / Position	Quantité minimale de commande

Feuille de donnees

[Fourni] Décharge

[Autres] M

[M5] M5x0.8

[Sens à gauche] De la droite vers la gauche

[Autres] M

[M5] M5x0.8

[Avec jauge de pression] Manomètre de forme ronde (sans indicateur de limite)

Avec support

0.05 à 0.7MPa

Unités de plaque signalétique et de jauge de pression : MPa

Aucun

Poignée vers le bas

1 pièces

Prix unitaire (hors TVA)(Prix unitaire TTC)	Jour d'expédition standard

34.06 €

( 40.53 € )

26 jours ouvrables

Plus d'informations

Informations de base

Informations de base

SMC Regulator AR10-A to AR40-A.
[Features]
· Energy saving regulator.
· Pressure drop amount: Improved by up to 50%.
